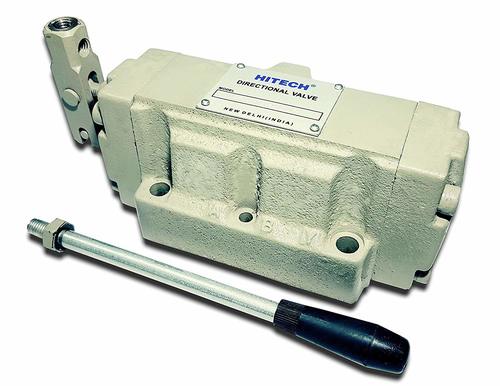

Hydraulic Directional Control Valves

Product Description

Empowered by our ultramodern manufacturing unit and expert professionals we are affianced in manufacturing exporting and supplying the premium quality range of Hydraulic Directional Control Valves These valves are widely used in automotive and allied applications  to be installed in hand lever assembly The provided valves are manufactured by making use of high grade raw materials under the guidance of our diligent professionals Moreover the offered Hydraulic Directional Control Valves can be availed from us at market leading prices

Features

Robust construction

Easy to install

Corrosion resistance

Excellent durability

GENERAL DESCRIPTION

These valves are used when a direction of oil flow is required manually by shifting the spool position through a hand lever assembly In this type of valves cap ends are externally drained To use this valves in series ie the maximum pressure on T port can be achieved These valves are available in three positions as well as two positions offset or center set and detent version is also available

ORDERING CODE

GRAPHICAL SYMBOL

OTHER FEATURES

  03 Series 04 Series 06 Series

Max Flow Rating 100L 250L 500L

Max Working Pressure 315 Kgcm2 315 Kgcm2 315 Kgcm2 PAB T Ports

Working Temp 65oC

Filtration 25 microns

Recommended Oil Petroleum based oil with viscosity ranging between 150 SSU to 225 SSU at 40C
